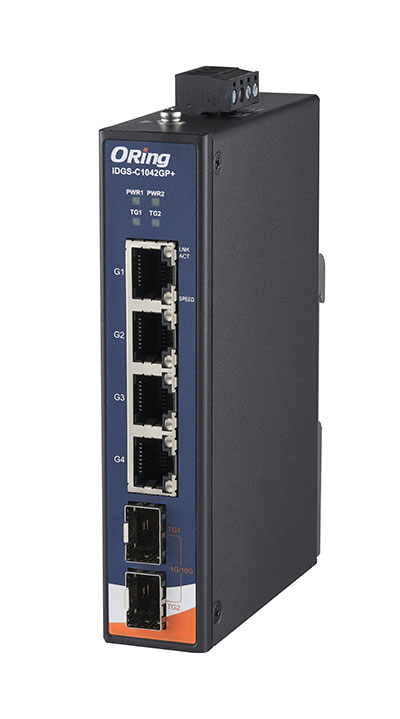

IDGS-C1042GP+ Industrial Unmanaged Switch
Industrial Unmanaged Switch 4 port 2.5G + 2 1G/10G SFP
Overview IDGPS-C1042GP+-BT
IDGS-C1042GP+ is unmanaged 2.5 gigabit Ethernet switch with 10G uplinks. The Ethernet switch equips with 4x 10/100/1000/25000Base-T(X) ports with 2x 1G/10GBase-X SFP ports. The four 2.5 Gigabit Ethernet ports are available for connecting high-speed interface devices, such as WIFI 6 APs, 2.5G PCIe adapters, and 2.5G servers. With 10 Gigabit capability, you can experience faster data transfer rates, reduced latency, and improved overall efficiency in handling bandwidth-intensive tasks! With an extensive operating temperature range spanning from -40°C to 75°C
Features IDGS-C1042GP+
- Provides 4x10/100/1000/2500Base-T(X) ports
- Switching latency: 10 µs - Switching bandwidth: 60Gbps
- Support store and forward transmission
- Supports Jumbo frame up to 16KBytes
- Dual power inputs
- Rigid IP-40 housing design
- DIN Rail mounting
Interfaces
- 4 x 10/100/1000/2500Base-T(X) Ports in RJ45
- 2 x 1G/10GBaseX (SFP)
Environmental
- Operating Temperature -40 to 75°C
- Operating Humidity 5% to 95% Non-condensing
Power
- Redundant Input Power Dual DC inputs. 12-48 VDC on 4-pin terminal block
- Power Consumption (Typ.): 10 Watts
- Overload Current Protection Present
Physical Characteristics
- Dimensions (mm): 28(W) x 88 (D) x 130(H)
- Enclosure: metallic - IP40
- Warranty: 5 years
Accessories
- NDR-75 series 75W DIN-Rail power supply
