Device Server Industriali RS232/422/485

Le soluzioni di connettività seriale RS 232/422/485 a Ethernet IP disponibili offrono un'ampia gamma di prodotti per un'integrazione facile e sicura in una moltitudine di ambienti e applicazioni. I Device Server industriali permettono di collegare dispositivi seriali legacy – come PLC, RTU, sensori e strumenti di misura – a reti Ethernet. Grazie alla conversione affidabile tra porte RS232/RS485 e IP, garantiscono accesso remoto sicuro, gestione centralizzata e continuità operativa nelle infrastrutture critiche. Sono essenziali in sottostazioni elettriche, impianti di automazione e sistemi SCADA dove robustezza, protezione EMC e alta disponibilità sono requisiti fondamentali.

Modelli di Device Server Seriali disponibili

IOLAN DG1

IOLAN DG1 Servidor de 1 puerta RS232/422/485

Device Server

  • 1x RS232/422/485
  • 1x eth 10/100/1000TX
  • IPv6/IPv4, SNMPv3, Syslog, Web GUI, CLI
  • Virtual COM/TTY, TCP/UDP, Tunnel, Telnet
  • Range temp 0ºC a 55ºC

IOLAN DG1 TX

IOLAN DG1 TX - Servidor RS232/422/485 de rango extendido

Device Server a range esteso

  • 1x RS232/422/485
  • 1x eth 10/100/1000TX
  • IPv6/IPv4, SNMPv3, Syslog, Web GUI, CLI
  • Virtual COM/TTY, TCP/UDP, Tunnel, Telnet
  • Range temp -40ºC a 74ºC

IOLAN SDG

iolan sdg

Secure Device Server

  • 1, 2, 4, 8x RS232/422/485
  • 1x eth 10/100/1000TX
  • IPv6, IPv4, TCP/IP, Rev SSH, SSH, SSL, IPSec, L2TP/IPSec, CIDR, RIPV2, UDP, Telnet, rev Telnet, DNS, DynDNS, HTTP, HTTPS, SMTP, SNMPv3
  • Virtual COM/TTY, TCP/UDP, Tunnel, Telnet, Console Server, Vmodem
  • Range temperature: 0ºC a 55ºC

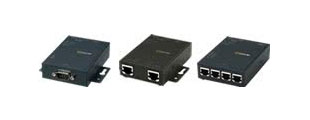

IOLAN SDG TX

IOLAN SDG TX Servidor RS232/422/485 de rango extendido

Secure Device Server a Range Esteso

  • 1, 2, 4x RS232/422/485
  • 1x eth 10/100/1000TX
  • IPv6, IPv4, TCP/IP, Rev SSH, SSH, SSL, IPSec, L2TP/IPSec, CIDR, RIPV2, UDP, Telnet, rev Telnet, DNS, DynDNS, HTTP, HTTPS, SMTP, SNMPv3
  • Virtual COM/TTY, TCP/UDP, Tunnel, Telnet, Console Server, Vmodem
  • Range temperature: -40ºC a 74ºC

IOLAN SDG P

iolan sdg8p

Secure Device Server alimentazione PoE

  • 4, 8x RS232/422/485
  • 1x eth 10/100/1000TX
  • IPv6, IPv4, TCP/IP, Rev SSH, SSH, SSL, IPSec, L2TP/IPSec, RIPV2, UDP, Telnet, rev Telnet, DNS, DynDNS, HTTP, HTTPS, SMTP, SNMPv3
  • Virtual COM/TTY, TCP/UDP, Tunnel, Telnet, Console Server, Vmodem
  • Range temp.: 0ºC a 55ºC

IDS-312L

IDS-312L Device Server Industrial

Secure Device Server Industriale

  • 1x RS232/422/485(DB9M)
  • 2x eth 10/100TX
  • ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP
  • Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP
  • DIN Rail - Range temp -40ºC a 70ºC

IDS-322

IDS-322 Serial Server

Secure Device Server Industriale

  • 2x RS232/422/485(DB9M)
  • 2x eth 10/100TX
  • ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP
  • Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP
  • Range temp -40ºC a 70ºC

SE5201

SE5201 Servidor 1x RS232/422/485

Device Server industriale

  • 1x RS232/422/485(DB9M/TB)
  • 1x eth 10/100TX
  • TCP, IPv4, UDP, DHCP Client, HTTP, HTTPS, Telnet, ARP, SNMPv1,v2c,v3
  • TCP server/client, UDP, Virtual COM, Tunneling
  • Range temp -40ºC a 70ºC

SE5202

SE5202 Servidor 2x RS232/422/485

Device Server Industriale

  • 2x RS232/422/485(DB9M/TB)
  • 1x eth 10/100TX
  • TCP, IPv4, UDP, DHCP Client, HTTP, HTTPS, Telnet, ARP, SNMPv1,v2c,v3
  • TCP server/client, UDP, Virtual COM, Tunneling
  • Range temp -40ºC a 70ºC

SE5901

se5901

Secure Device Server industriale

  • 1x RS232/422/485(DB9M/TB)
  • 2x eth 10/100TX
  • IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv3, HTTP, HTTPS, SMTP/TLS, Telnet, RFC2217, 802.1D-2004 RSTP, OpenVPN o IPsec
  • TCP server/client, UDP, Virtual COM, Tunneling
  • DIN Rail - Range temp -40ºC a 85ºC

SE5904D

SE5904D-SFP

Secure Device Server Industriale

  • 4x RS232/422/485(DB9M/TB)
  • 2x 100/1000BaseX (SFP)
  • IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv3, HTTP, HTTPS, SMTP/TLS, Telnet, RFC2217, 802.1D-2004 RSTP, OpenVPN o IPsec
  • TCP server/client, UDP, Virtual COM, Tunneling
  • DIN Rail - Range temp -40ºC a 85ºC

SE8502

SE8502 Servidor 4x RS232/422/485 EN50155

Device Server EN50155

  • 2x RS232/422/485(M12)
  • 1x eth 10/100TX
  • TCP, IPv4, UDP, DHCP Client, HTTP, Telnet, NTP, DNS, SNMPv1,v2c,v3
  • TCP server/client, UDP, Virtual COM, Tunneling
  • IP68 - Range temp -40ºC a 75ºC

Modbus TCP/RTU/ASCII Gateways

Conversione tra Modbus TCP e Modbus RTU/ASCII

modbus gateways
  • DIN Rail Mounting
  • Range Esteso di Temperature
  • Alimentazioni 12-48Vcc

IOLAN DG1

IOLAN DG1

IOLAN DG1 / DG1 TX Modbus Gateway

  • 1x RS232/422/485
  • 1x eth 10/100/1000TX
  • IPv6/IPv4, SNMPv3, Syslog, Web GUI, CLI
  • Modbus Master Gateway o Modbus Slave Gateway
  • Range temp 0ºC a 55ºC
  • Range temp -40ºC a 74ºC

IOLAN SDG

iolan sdg

IOLAN SDG / SDG TX Secure Modbus Gateway

  • 1, 2, 4, 8x RS232/422/485
  • 1x eth 10/100/1000TX
  • IPv6, IPv4, TCP/IP, Rev SSH, SSH, SSL, IPSec, L2TP/IPSec, CIDR, RIPV2, UDP, Telnet, rev Telnet, DNS, DynDNS, HTTP, HTTPS, SMTP, SNMPv3
  • Modbus Master Gateway o Modbus Slave Gateway
  • Range temp. IOLAN SDG: 0ºC a 55ºC
  • Range temp. IOLAN SDG TX: -40ºC a 74ºC

IDS-312L

IDS-312L

Secure Device Server Industriale

  • 1x RS232/422/485(DB9M)
  • 2x eth 10/100TX
  • ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP
  • RTU Master, RTU Slave, ASCII Master, ASCII Slave
  • DIN Rail - Range temp -40ºC a 70ºC

IDS-322

IDS-322

Secure Device Server Industriale

  • 2x RS232/422/485(DB9M)
  • 2x eth 10/100TX
  • ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP
  • RTU Master, RTU Slave, ASCII Master, ASCII Slave
  • Range temp -40ºC a 70ºC

MB5201

SE5201

Modbus Gateway industriale

  • 1x RS232/422/485(DB9M/TB)
  • 1x eth 10/100TX
  • TCP, IPv4, UDP, DHCP Client, HTTP, HTTPS, Telnet, ARP, SNMPv1,v2c,v3
  • Modbus TCP Server/Client(o VCOM)
    Modbus RTU/ASCII (master/slave)
  • Range temp -40ºC a 70ºC

MB5202

MB5202

Modbus Gateway Industriale

  • 2x RS232/422/485(DB9M/TB)
  • 1x eth 10/100TX
  • TCP, IPv4, UDP, DHCP Client, HTTP, HTTPS, Telnet, ARP, SNMPv1,v2c,v3
  • Modbus TCP Server/Client(o VCOM)
    Modbus RTU/ASCII (master/slave)
  • Range temp -40ºC a 70ºC

MB5901

se5901

Secure Device Server industriale

  • 1x RS232/422/485(DB9M/TB)
  • 2x eth 10/100TX
  • IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv3, HTTPS, SMTP/TLS, RSTP, OpenVPN o IPsec
  • Modbus TCP Server/Client(o VCOM)
    Modbus RTU/ASCII (master/slave)
  • DIN Rail - Range temp -40ºC a 85ºC

MB5904D

SE5904D

Secure Modbus Gateway

  • 4x RS232/422/485(DB9M/TB)
  • 2x 100/1000BaseX (SFP)
  • IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv3, HTTPS, SMTP/TLS, RSTP, OpenVPN o IPsec
  • Modbus TCP Server/Client(o VCOM)
    Modbus RTU/ASCII (master/slave)
  • DIN Rail - Range temp -40ºC a 85ºC

Device Server WLAN

Connettività RS232/422/485 a reti Wi-Fi 802.11 a/b/g/n. Tutte le funzionalità standard di un server di dispositivi sono disponibili sulle reti Wi-Fi. Aggiunge protocolli di sicurezza.

  • DIN Rail Mounting
  • Range Esteso di Temperature
  • Alimentazioni 12-48Vcc

IOLAN SDG W

iolan sdsw

Dual Band Serial Access Point

  • 1/2/4x RS232/422/485(DB9 / RJ45)
  • 1x eth 10/100/1000TX
  • WIFI 802.11 a/b/g/n
  • Range temp -40ºC a 75ºC

IDS-4312+

IDS-4312 Industrial Access Point

WLAN Device Server

  • 1x RS232/422/485 (DB9M)
  • 2x eth 10/100TX
  • WLAN IEEE 802.11b/g/n
  • MQTT/MQTT Sparkplug B/CoAP/LWM2M
  • IP30 - Range temp -25ºC a 70ºC

SW5501C

SW5501C Industrial Access Point

Device Server WIFI

  • 1x RS232/422/485(DB9M/TB)
  • 1x eth 10/100TX
  • WIFI 802.11 b/g/n
  • Range temp -10ºC a 60ºC

SW5502C

SW5502C Industrial WIFI Device Server

Device Server WIFI

  • 2x RS232/422/485(DB9M/TB)
  • 1x eth 10/100TX
  • WIFI 802.11 b/g/n
  • Range temp -10ºC a 60ºC

SW5501

SW5501 Industrial Access Point

Server Seriale Wireless Dual Band

  • 1x RS232/422/485(DB9M/TB)
  • 1x eth 10/100/1000TX
  • WIFI 802.11 a/b/g/n
  • Range temp -10ºC a 60ºC

SW5502

SW5502 Industrial WIFI

Server Seriale Wireless

  • 2x RS232/422/485(DB9M/TB)
  • 1x eth 10/100/1000TX
  • WIFI 802.11 a/b/g/n
  • Range temp -10ºC a 60ºC

Gateway M2M

Accesso alle reti mobili 2G/3G/4G da dispositivi seriali RS232/422/485.
Reti 4G LTE ad alta velocità con backup HSPA+, UMTS, EDGE e GPRS.

  • DIN Rail Mounting
  • Range Esteso di Temperature
  • Comunicazioni sicure: SSL VPN - IPsec VPN

IMG-4312D+-D4G

img-4312d

Gateway M2M Industriale 4G CAT4

  • 2x 10/100TX + 2x SIM
  • 1x RS232/422/485 + 1x DI/DO
  • WIFI IEEE 802.11 b/g/n
  • MQTT/MQTT Sparkplug B/CoAP/LWM2M
  • Alimentazione: 12-48VDC
  • DIN Rail - IP30. Temp: -25ºC a 70ºC

IMG-4312-4G

img-4312

Gateway M2M Industriale 4G CAT4

  • 2x 10/100TX + 1x SIM
  • 1x RS232/422/485
  • WIFI IEEE 802.11 b/g/n
  • Alimentazione 12-48V
  • Supporto PoE PD in modello 4312+
  • DIN Rail - IP30. Temp: -10ºC a 60ºC

IMG-311DL-4GS

img-311dl

Gateway Industriale 4G LTE CAT1

  • 1x 10/100TX + 1x SIM
  • 1x RS232/422/485 + 2x DI/DO
  • Protocolli IoT MQTT / LWM2M
  • Alimentazione: 12-48VDC
  • DIN Rail - IP30. Temp: -10ºC a 60ºC

SE5901B

Gateway Industriale 4G LTE CAT4

  • 1x 10/100/1000TX
  • 1x RS232/422/485
  • VPN over IPsec, OpenVPN o PPTP
  • GPS / GNSS
  • DIN Rail - IP30. Temp: -40ºC a 70ºC

IOLAN SDG L

iolan-sdsl

Router Industriale 4G LTE CAT3

  • 1-2x RS232/422/485
  • 1x Gigabit Eth 10/100/1000 + 1x SIM
  • DIN Rail / Desktop - IP40. Temp: -40ºC a 75ºC

SE5201B-C1

se5201b-c1

Gateway M2M Basso Consumo 4G LTE CAT1

  • 2x 10/100TX + 1/2x SIM
  • 1x RS232/422/485 + 1 DI/DO
  • Efficient Power Consumption (<100 mW)
  • DIN Rail  - IP30. Temp: -30ºC a 70ºC

SE5201B-M1

se5201b-m1

Gateway M2M Basso Consumo 4G LTE CAT M1 & CAT NB2

  • 2x 10/100TX + 2x SIM
  • 1x RS232/422/485 + 1 DI/DO
  • Efficient Power Consumption (<100 mW)
  • DIN Rail  - IP30. Temp: -30ºC a 70ºC

IRG5410

irg5410

Router 4G LTE-A CAT6

  • 1x Gigabit Eth 10/100/1000 + 2x SIM
  • 1x RS232 (DB9M) + 1x USB-C + 1x RS485
  • GPS / GNSS
  • DIN Rail / Desktop - IP54. Temp: -40ºC a 70ºC
  • EMark, IECEx/IECx, ATEX Class 1 Zone 2 - EN50155 / EN50121-4
